• Model NO.：QLT
• Aquatic Products Processing Machinery：Aquaculture Oxygenation Equipment
• Fishing Gear Winch Type：Aquaculture Oxygenation Equipment
• Fishing Auxiliary Machinery Type：Aquaculture Oxygenation Equipment
• Certification：ISO9001:2008
• Condition：New
• Finished processing machinery：Aquaculture Oxygenation Equipment
• Warranty：1 Year
• Voltage：380V
• Frequency：50Hz
• Color：as Per Request
• Power：1.5kw-3kw
• Transport Package：Export Standard Wooden Box
• Origin：Hebei, China
• HS Code：8414809090
• Production Capacity：8000 Sets,Year

Basic Info.

Model NO. QLT Aquatic Products Processing Machinery Aquaculture Oxygenation Equipment Fishing Gear Winch Type Aquaculture Oxygenation Equipment Fishing Auxiliary Machinery Type Aquaculture Oxygenation Equipment Certification ISO9001:2008 Condition New Finished processing machinery Aquaculture Oxygenation Equipment Warranty 1 Year Voltage 380V Frequency 50Hz Color as Per Request Power 1.5kw-3kw Transport Package Export Standard Wooden Box Origin Hebei, China HS Code 8414809090 Production Capacity 8000 Sets/Year

Product Description

1.5Kw 3.0Kw Elecrtic Aerator Shrimp Fish Pond Submersible Aerator

QLT series submersible push water aeration oxygenation pump are mainly used in freshwater aquaculture, marine aquaculture, water purification and oxygenation, Sewage treatment plant aeration tank, and Aerated grit chamber.

Oxygenate and mix the mixed liquid of sewage sludge, and carry out biochemical treatment of sewage.

Simple structure and high efficiency:

The integrated aeration and oxygenation does not need to be equipped with blowers, valves, water pumps, etc., low consumption and high efficiency, saving investment, no noise, maintenance-free, no space restrictions, no splashing phenomenon during operation, no waves, and no damage to the shore of the water body.

There is no need for liquid lubricating oil to lubricate, and there will be no leakage of lubricating oil to pollute the water body. The loss of kinetic potential energy is small and the mechanical efficiency is high.

Innovative oxygenation method:

The air is sucked into the water by the high-speed rotation of the propeller, and broken into tiny high-density mist-like bubbles under the impact of high-speed water flow, which spread to the middle and lower layers of the water body, increasing the gas-liquid mass transfer interface

The bubbles stay in the water for a long time, increasing the dissolved oxygen time.

At the same time, the burst of bubbles produces a large number of negative ions, which can fully dissolve oxygen and purify water. The strong thrust of the propeller makes the water send oxygen to 80 meters away, so that the oxygen-enriched water surrounds the entire water body, forming a simulated ecological water flow, turning the dead water into living water.

Product Specifications:

Model	Power supply	Power	Speed	Weight	Oxygenation capacity Kg(O2)/H	Air volume   -Water depth (m3/H-m)	Circulating water volume	Working area
QLT-1.5KW single head	380V/50HZ	1.5KW	2900RPM	54Kg	1.1-1.3	5-3.0	220m3/H	1000 m3
QLT-3.0KW-6 single head	380V/50HZ	3.0KW	980RPM	92Kg	1.5-1.8	8-3.0	300m3/H	2000 m3
QLT-3KW double head	380V/50HZ	3.0KW	2900RPM	80Kg	2.1-2.3	10-3.0	440m3/H	3000 m3

Advantage:

High efficiency and low consumption
Increase the yield
Fast dissolved oxygen
Sewage purification

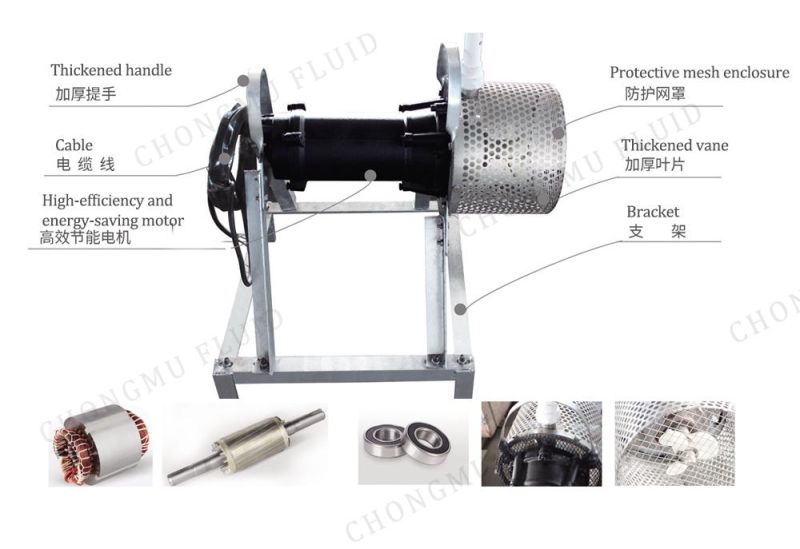

Structure:
FAQ:

1.Are you the manufacturer or trading company?
We are real manufacturer for centrifugal pumps,and we have been in this industry for more than 20 years.

2.Can we pay a visit to your factory?
Yes.We warmly welcome you to visit our factory.

3.What is the MOQ?
There is no MOQ.1 set is ok.
