Oat Seed Cleaning Equipment Pepper Cleaner

Hebei Ruixue Grain Selecting Machinery Company Limited
  • Warranty：1 Year
  • Model：5xzf-7.5f

Base Info

  • Model NO.：5XZC-7.5DS
  • Function：Remove Light, Big, Small Impurity
  • Cleaning Rate：98%
  • Capacity(T/H)：7.5
  • Power(Kw)：10.1
  • Weight(Mt)：1.8
  • Dimension(mm)：5150*2160*3400
  • Color：White
  • Delivery：25 Days
  • Transport Package：Wooden Case or Container
  • Specification：ISO9001-2008, TUV, SGS SONKAP
  • Trademark：SYNMEC
  • Origin：China
  • HS Code：84371090
  • Production Capacity：1000 Set,Year
  • Package size per unit product：3.50cm * 2.00cm * 2.00cm
  • Gross weight per unit product：1700.000kg

Description

Basic Info.

Model NO. 5XZC-7.5DS Function Remove Light, Big, Small Impurity Cleaning Rate 98% Capacity(T/H) 7.5 Power(Kw) 10.1 Weight(Mt) 1.8 Dimension(mm) 5150*2160*3400 Color White Delivery 25 Days Transport Package Wooden Case or Container Specification ISO9001-2008, TUV, SGS SONKAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 1000 Set/Year

Packaging & Delivery

Package size per unit product 3.50cm * 2.00cm * 2.00cm Gross weight per unit product 1700.000kg

Product Description

                                              Oat Seed Cleaning Equipment / Pepper cleaner

Feature

The oil bean seed grain cleaner and grader is professionally used for cleaning and grading seeds / grains.


Application

The Oat Seed Cleaning Equipment / Pepper cleaner is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.

Working principle

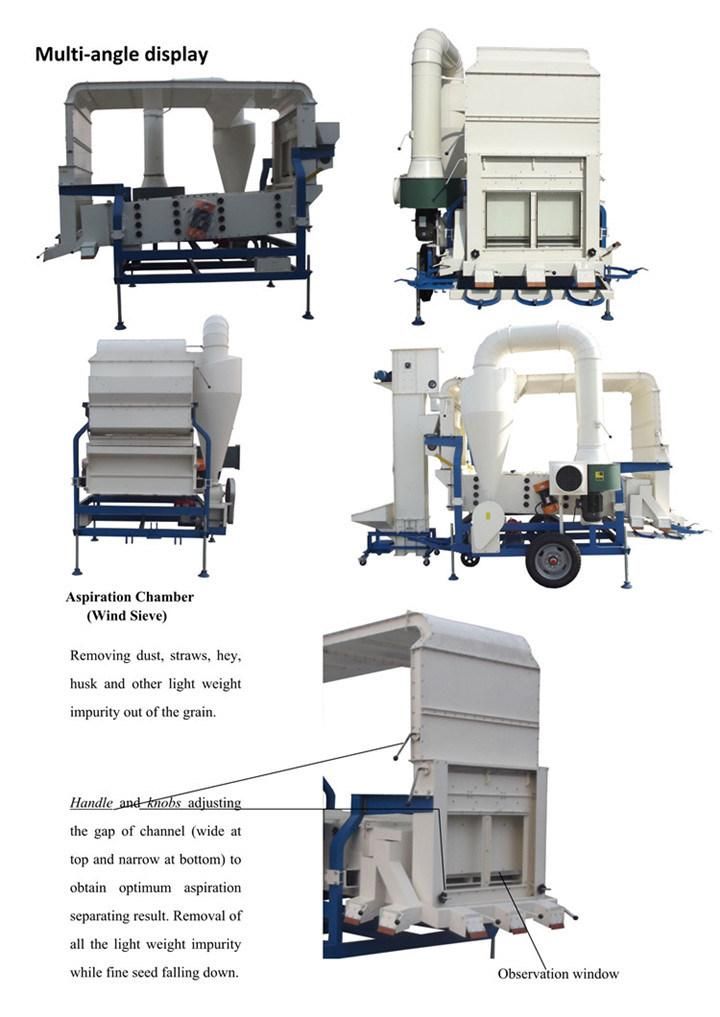

Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.
The sieves has Rubber Balls inside for the self-cleaning.

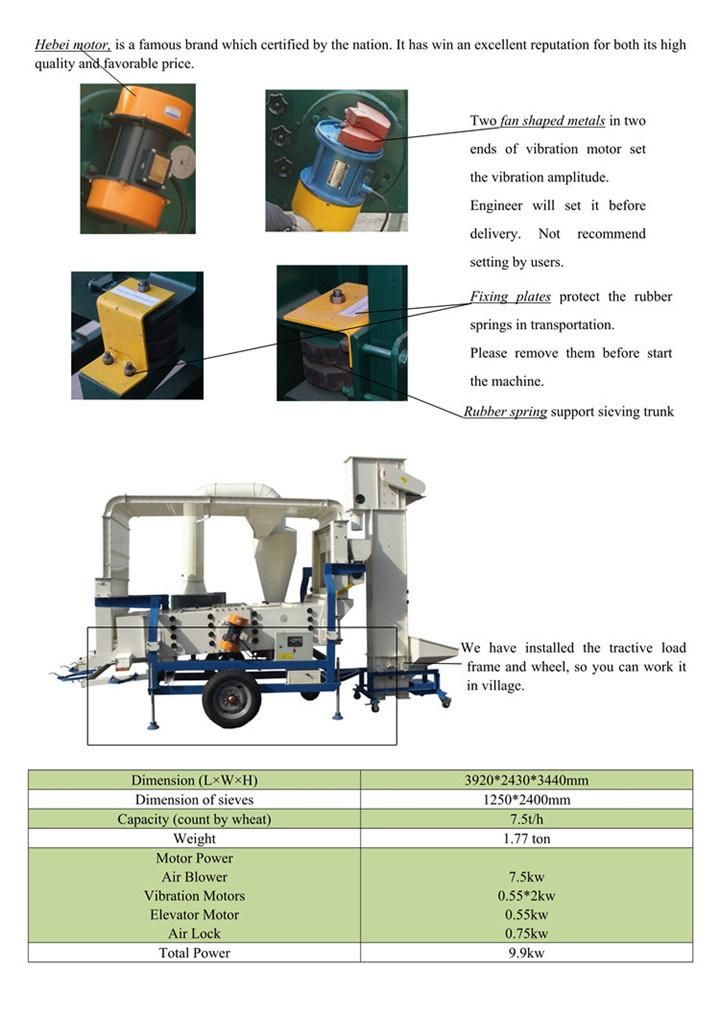

Specification of 5XZC Seed Grain Cleaner:
Model No.Capacity(T/H)Power(KW)Sieve Size(mm)Weight
5XZC-5DH Seed Grain Cleaner7.510.12000×10001600KG
5XZC-7.5F Seed Grain Cleaner7.510.12400×12501800KG
5XZC-7.5DS Seed Grain Cleaner7.59.92400x12501700KG
5XZC-15 Seed Grain Cleaner1010.52400×15001800KG
5XZC-25 Grain Cleaner2019.452400x18002900KG
