• Model NO.：YZYX 168
• Press Series：Fourth
• Voltage：380V
• Type：Spiral Oil Press
• Application：All
• Appearance：Uniaxial
• Press Materials：Soybean
• Condition：New
• Customized：Non-Customized
• Capacity：20ton Per Day
• Power：45kw
• Color：Green or Blue
• Transport Package：Wooden Box
• Specification：Certification: SGS, BV, ISO
• Trademark：GuangXin
• Origin：China
• HS Code：84792000
• Production Capacity：500 sets per month
• Package size per unit product：251.00cm * 90.00cm * 102.00cm
• Gross weight per unit product：1100.000kg

Basic Info.

Model NO. YZYX 168 Press Series Fourth Voltage 380V Type Spiral Oil Press Application All Appearance Uniaxial Press Materials Soybean Condition New Customized Non-Customized Capacity 20ton Per Day Power 45kw Color Green or Blue Transport Package Wooden Box Specification Certification: SGS, BV, ISO Trademark GuangXin Origin China HS Code 84792000 Production Capacity 500 sets per month

Packaging & Delivery

Package size per unit product 251.00cm * 90.00cm * 102.00cm Gross weight per unit product 1100.000kg

Product Description

20tpd Factory Price Sunflower Oil Press Machine (YZYX 168)




Product Description

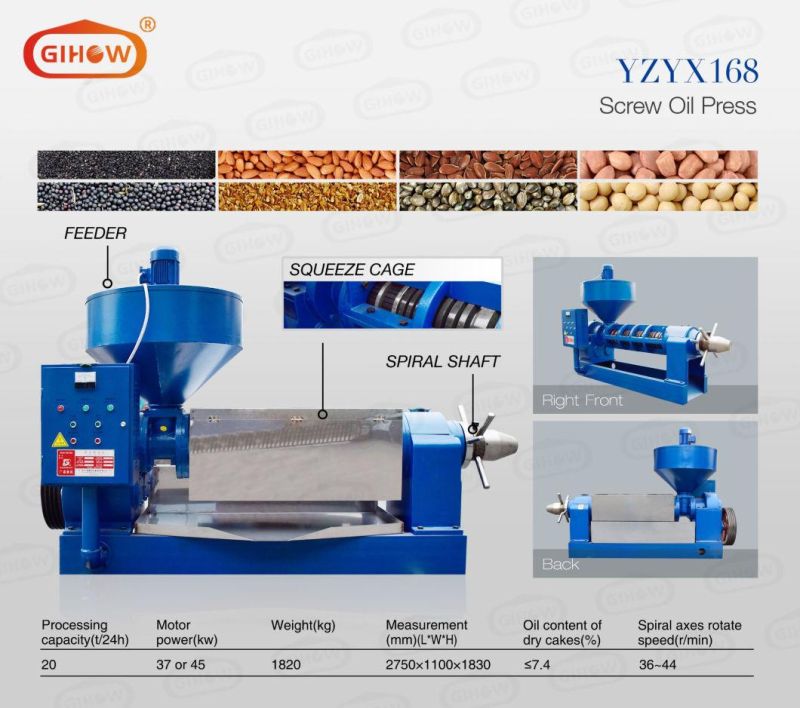

Guangxin YZYX168  :
Processing Capacity: 20t/24h
Oil content of dry cakes: 6.5%
Motor power: 45kw
 Weight: 1800 kg





Products show detail:

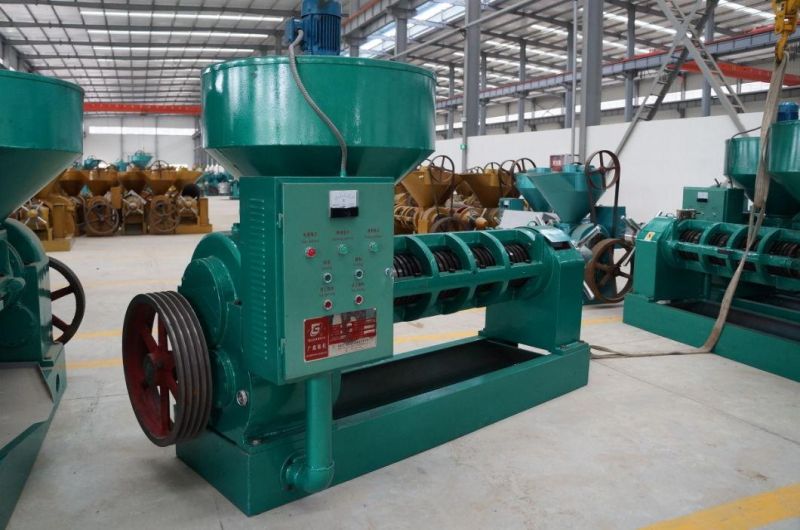

       The series YZYX168 spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.



Working principle:
1.  Transferred by the triangle belt, the electromotor drives the spiral shaft.
2.  Oil plants being carried toward to the end of the machine by rotating squeeze spirals.
3.  With the space between spirals and loops becoming smaller,the pressure in the chest is bigger.
4.  During this process, oil plants are smashed and the tissue cells are destroyed, then oil is separated from oil plants.
5.  After extracted, oil plants turns to be cakes containing low oil and is discharged in thin slices from the end.



Advangages

 1. More than 30 years of experience in manufacturing oil press.
 2.  oil press technology.
 3. Full inspection before delivery,  quality pass rate more than 98%.
 4. More than 300 professional workers. 10% of them are mechanical engineers technicians.
 5. Widely used in our life, have been exported to more than 70 countries.

YZYX168 series  oil press from Guangxin is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc.
The product conforms to the "Technology Standard of Agricultural Spiral Oil Press" under JB/T9793·1-1999 of the People's Republic of China.


FAQ

1. Delivery time.
---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
2. If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
3. What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.

4. What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)
