• Model NO.：35HP
• Traction Type：Traction
• Drive Type：Chain Drive
• Arbor Configuration：Horizontal Axis
• Certification：CE
• Color：Red
• Warranty：1year
• Whether There Are Multiple Working Modes：Yes
• Oil Wear：Low
• Transport Package：The Whole Machine Packaging
• Specification：2500*930*850mm
• Trademark：kehong
• Origin：China
• HS Code：870130
• Production Capacity：5000 Sets ,Year

Basic Info.

Model NO. 35HP Traction Type Traction Drive Type Chain Drive Arbor Configuration Horizontal Axis Certification CE Color Red Warranty 1year Whether There Are Multiple Working Modes Yes Oil Wear Low Transport Package The Whole Machine Packaging Specification 2500*930*850mm Trademark kehong Origin China HS Code 870130 Production Capacity 5000 Sets /Year

Product Description

Specification	2500*930*850mm
Crawler type	180-72-36
Engine speed	2200r
Total weight	950KG
Oil  wear	3 liter/acre
gearbox	gear change
Traveling speed	10KM/h
Working speed	It takes 1-2 hours per acre
Gears	Three forward gear, one reverse gear, divided into high and low speed, equivalent to six gears
crawler	Made of rubber and five layers of steel wire and iron skeleton, with guide rails and extra gear not easy to run and not easy to derailment.
Air filter	Need to add oil, the height of oil is about 1cm-2cm, use every day must clean up the dust in the air filter, after cleaning up the air filter add 1cm-2cm oil
Cistern	Add water to 1/3 place of water drift, otherwise easy to damage machine parts, reduce life

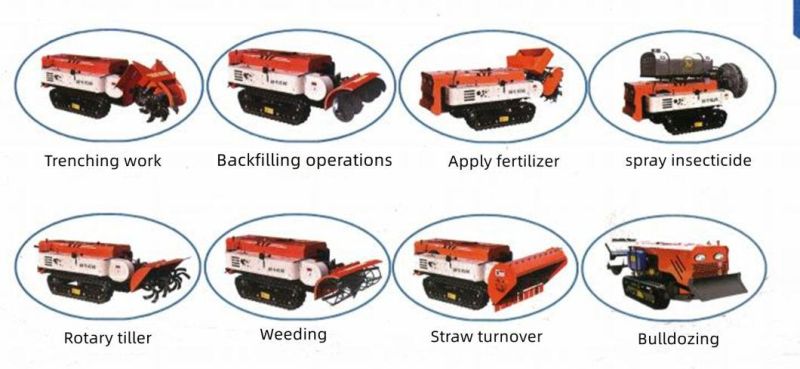

Rotary tillage	Rotary tillage width 100cm, rotary tillage depth 0-25cm (special requirements can reach 1.2m tool)
weeding	Weeding width 90cm, scraping and weeding.
Backfill	Soil harvesting width 150cm
trenching	Ditch width 30cm, can be widened to 40cm, 0-40cm depth, 200-500 m/h
apply fertilizer	Fertilizing ditch-opening backfilling machine, the depth of 0-30cm is the deepest, fertilizing hopper can hold about 100KG of fertilizer, the funnel can be enlarged

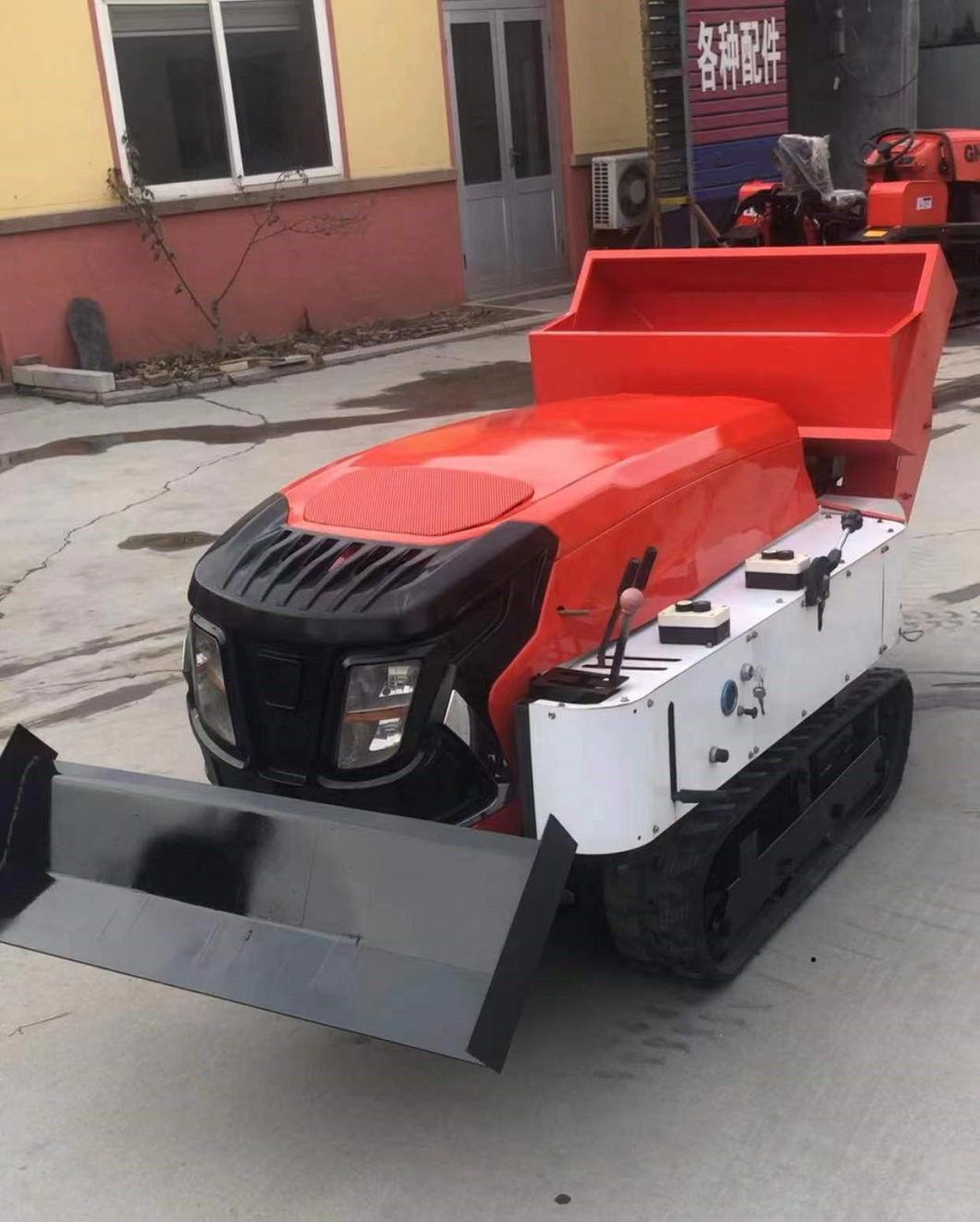

Performance advantages of tracked tractors:

Crawler tractor due to low center of gravity, adhesion coefficient is big, has good resistance to the slope stability of the tilting and falling, at the same time also has a small turning radius of mobility, gradeability strong cross country ability etc., for the mountainous and hilly areas of farmland, heavy stick land and heavy load such as planting forest homework assignments, terraced fields, has better adaptability than LunTuo.  Especially in hilly areas, the arable land slope is large and the soil resistance is uneven, resulting in the poor stability, insecurity, uneven depth of operation and poor quality of operation of wheeled tractor on the slope. Farmers choose crawler tractor to plow, cultivate land and cultivate land operation, which will significantly improve the quality of operation.

All accessories can be used with ordinary tractors

Fertilizing ditch-opening backfilling machine, the depth of 0-30cm is the deepest, fertilizing hopper can hold about 100KG of fertilizer, the funnel can be enlarged

The frame is made of thickened steel plate, and the sheet metal parts are made of steel plate above T2, which is strong and durable.

Full gear transmission is adopted. The walking transmission has three forward gears, one backward gear and high and low speed gears.  The working connection box has high and low speed, and can install a large number of agricultural tools such as rotary tillage and medicine.

There are two modes of operation: manual operation and remote control.

Manual operation is manual pull rod mechanism, pull rod is made of steel bar above OP10, flexible steering, simple operation, easy to use

There are two kinds of shape, square and round, with headlights, which can work at night.

B belt drive, large power, easy to disassemble, add pressure belt wheel, will not easily drop the belt.

The 30-35-36 two-layer frame is welded with thickened square pipe, which is reasonable in design and can effectively protect the engine and other core devices.

Remote control device adopts electronic remote control sleeve hydraulic system, flexible operation.

Increase hydraulic fuel tank, reduce the remote control failure caused by lack of hydraulic oil, farm tools can not be used.

Equipped with 500W copper generator and hydraulic oil radiator, remote control adopts engineering remote control, receiver and regulator in the machine are sealed.
