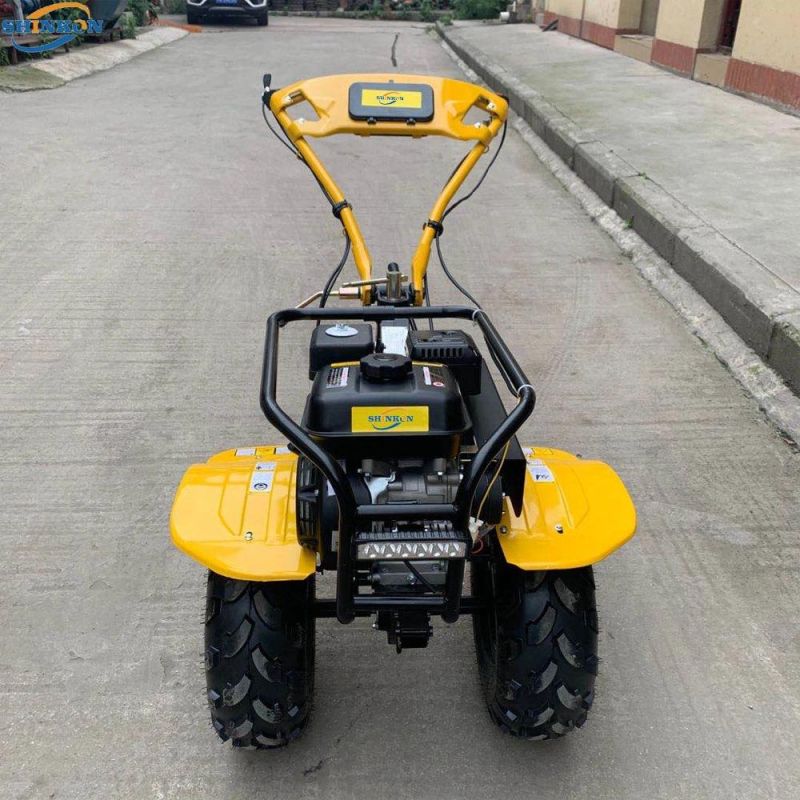

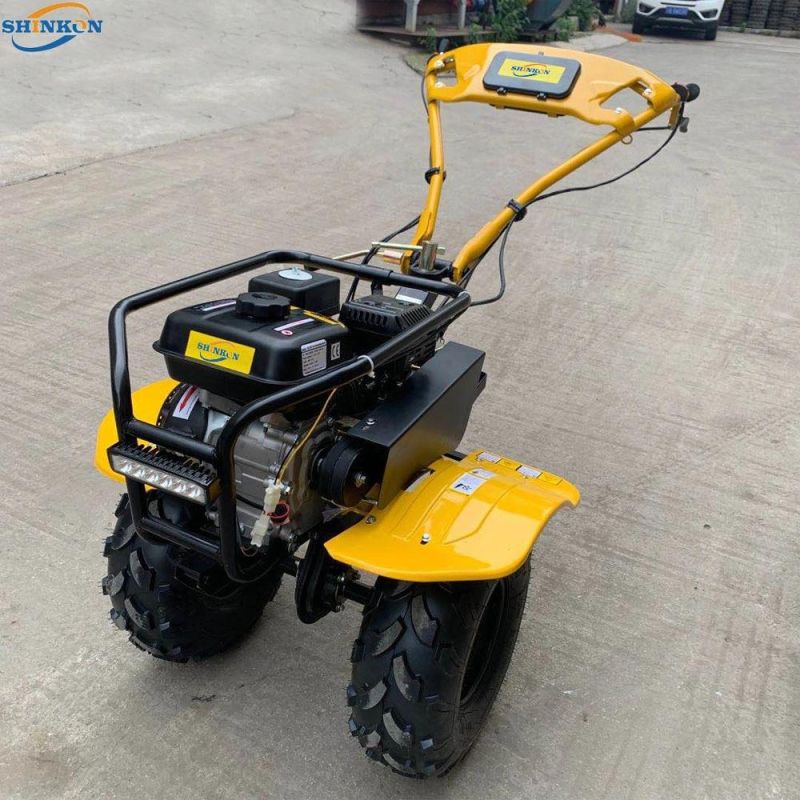

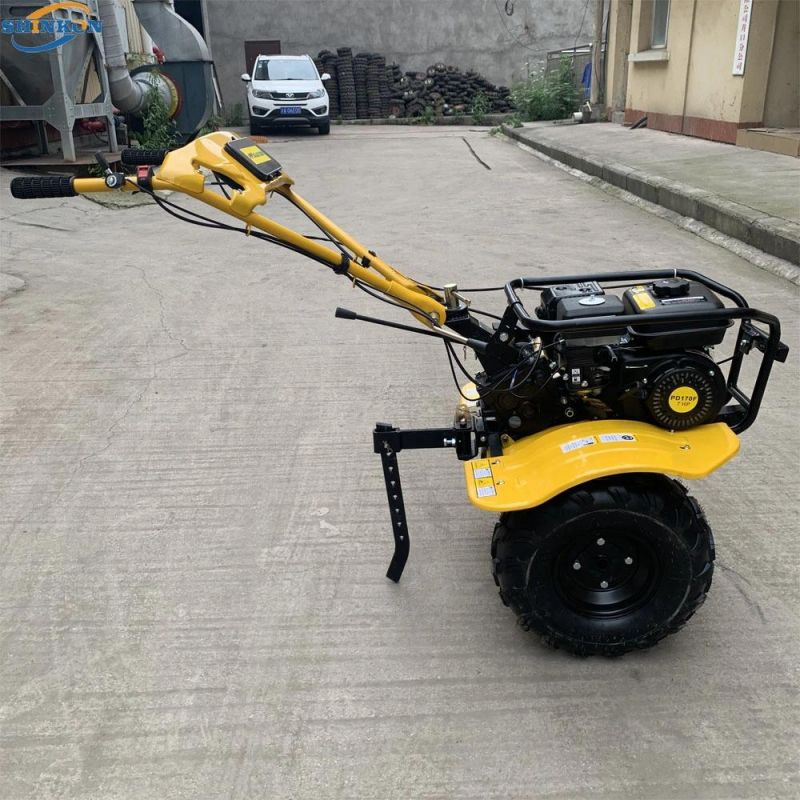

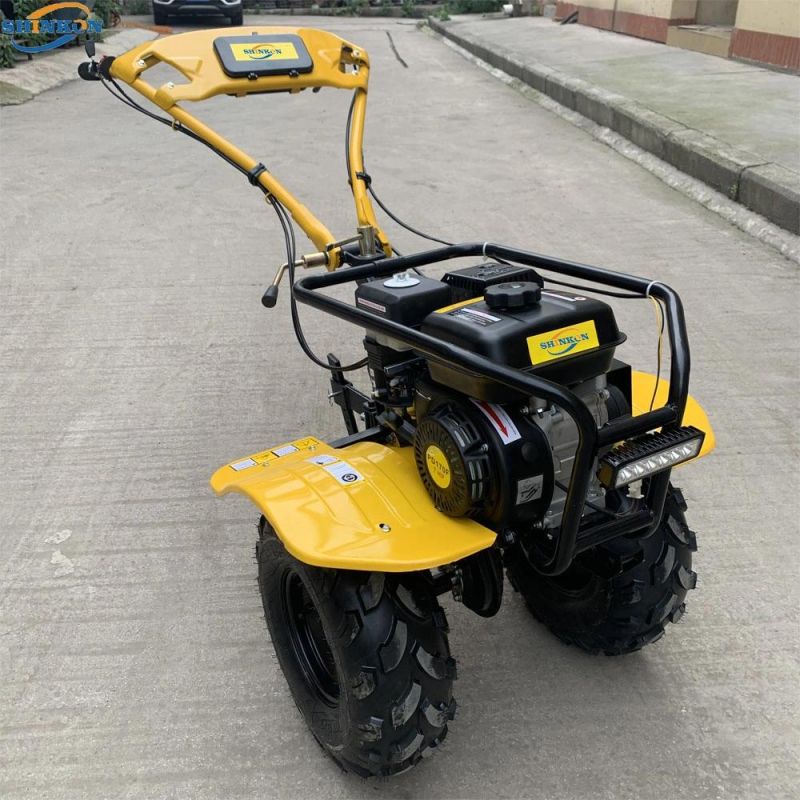

7HP Multi-Functional Gasoline Agricultural Tiller Powered by Euro-V Engine
CHONGQING SHINKON IMPORT & EXPORT CO., LTD.- Type：Micro-Farming Machine
- Application Field：Agriculture, Fisheries, Agriculture, Forestry, Weeding, Power Weeder
- Farming Policy：Dry Cultivating Machinery
- Power Source：Gasoline
- Operation：Soil Preparation Machinery, Continuous Running Operation
- Traction Type：Semi Hanging
Base Info
- Model NO.：SK800
- Drive Type：Gear Drive
- Arbor Configuration：Vertical Shaft
- Certification：CE
- Color：OEM Colors, OEM
- Engine：Full Steel Crankshaft and Camshaft, Without Alert
- Handle System：Q235 Steel
- Gearbox Upper Part：Aluminum Alloy
- Gearbox Lower Part：Cast Iron
- Gears in Gearbox：20 Cr, Mn, Ti 20
- Mud Fenders：Q235 Cold-Rolled Steel Sheets
- Tyres：Rubber
- Wheel Axle：Seamless Steel Tube
- Wheel Rim：Q195 Steel Q195

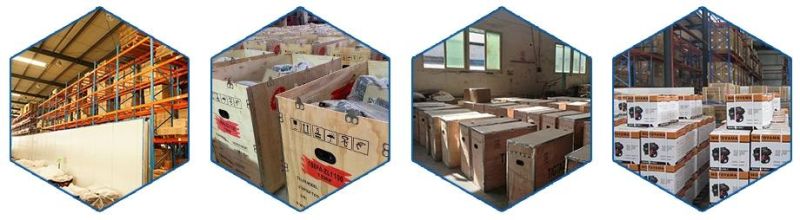

- Transport Package：Strong Plywood Box Packing
- Specification：950*550*770mm
- Trademark：SHINKON, HENSENPOWER
- Origin：Chongqing, China
- HS Code：8432290000
- Production Capacity：4000 Pieces,Month
Description
Item
SK800
Tilling width (mm)
750-800
Tilling depth (mm)
100-300
Gear shifts
-1, 0, 1, 2
Mode of driving
Belt
Power engine
SK170F
Displacement (ml)
212
Max. power output hp/rpm
7/3600
Fuel tank(L)
Oil (L)
0.6
Exterior size (mm)
820x375x760
20" (pcs)
72
40"HQ (pcs)
150
