• Model NO.：JLBX215, JLBX216, JLBX218, JLBX2113
• Capacity：2-20 Tons
• Motor：55 Kw or 110 Kw
• Voltage：380V, Customerized
• Auto：Yes
• Long Life：Yes
• Economy：Yes
• Name：Wood Chips Making Machine
• Items：Wood Chipper Machine
• Machine：Drum Wood Chipper
• Transport Package：Wooden Case or Container
• Specification：3 to 12 tons in weight
• Trademark：Kowloon
• Origin：Zhengzhou, Henan, China
• HS Code：8465960000
• Production Capacity：420 Sets,Year

Basic Info.

Model NO. JLBX215, JLBX216, JLBX218, JLBX2113 Capacity 2-20 Tons Motor 55 Kw or 110 Kw Voltage 380V, Customerized Auto Yes Long Life Yes Economy Yes Name Wood Chips Making Machine Items Wood Chipper Machine Machine Drum Wood Chipper Transport Package Wooden Case or Container Specification 3 to 12 tons in weight Trademark Kowloon Origin Zhengzhou, Henan, China HS Code 8465960000 Production Capacity 420 Sets/Year

Product Description

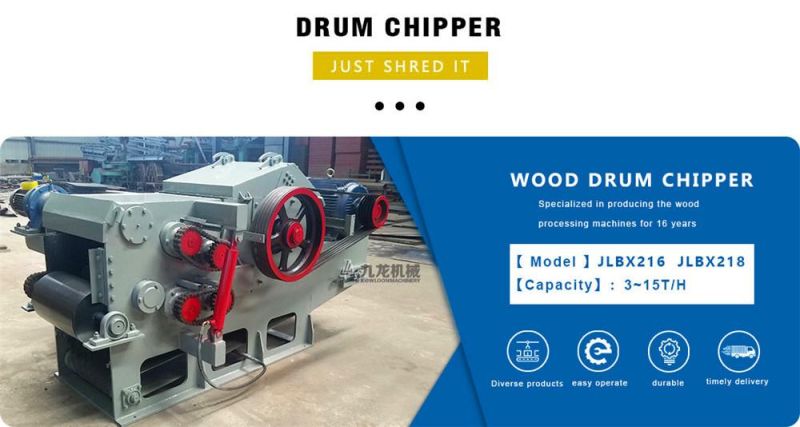

CHeap Price Wood Chips Making Machine/Wood Chipper Shredder/Drum Electric Industrial Wood Chipper

Discription:
JLBX drum type chipper is suitable very much for chipping particle board, density beaverboard, wood fiber board, especially for  pulp and paper-making plant, power plant and industrial boiler, etc.

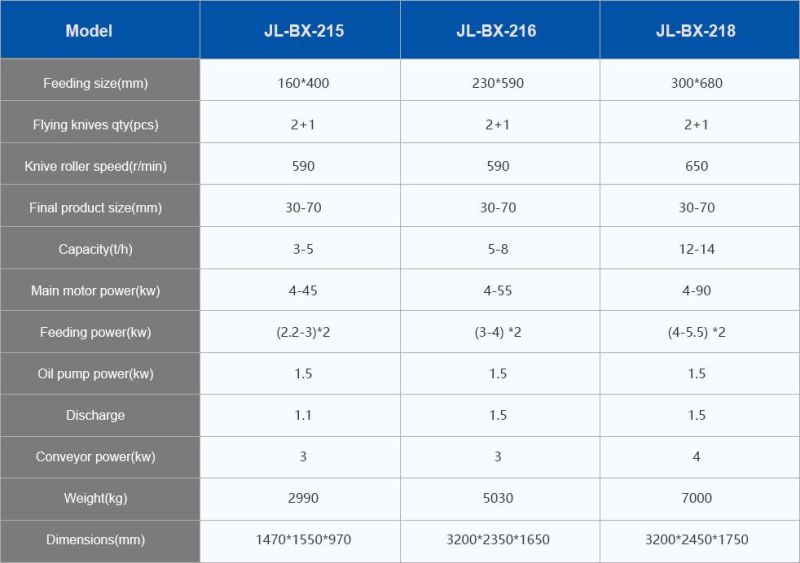

Technical Parameters:

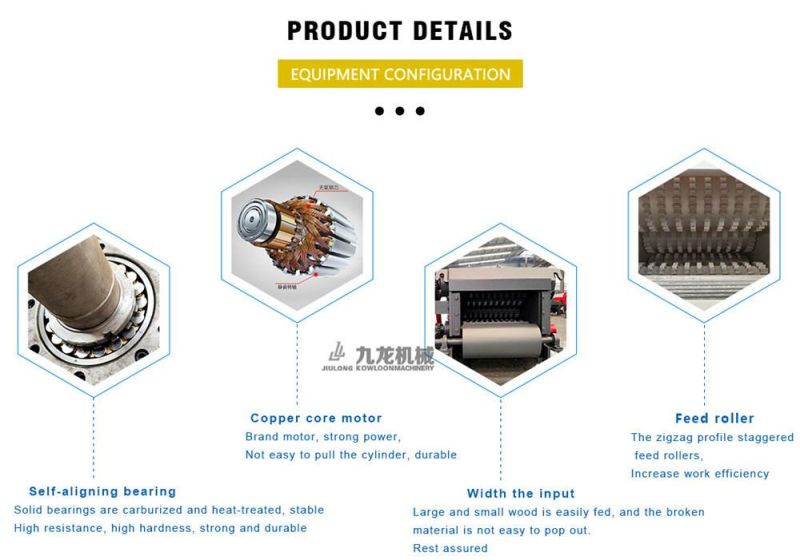

Product details :

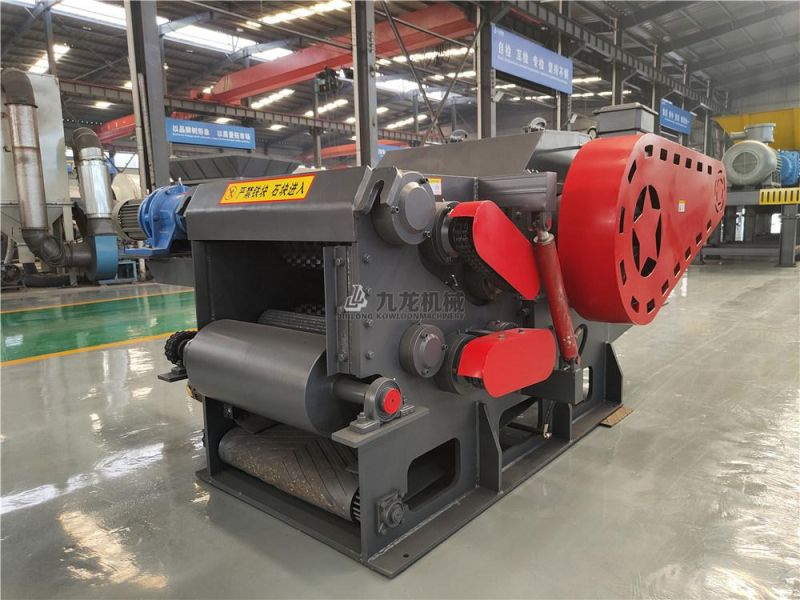

It mainly consists of body, knife roller, top and bottom feed mechanism, feeding device, hydraulic system.
Knives was fixed on the roller by special bolts. As different thickness of raw material, the top feed mechanism could be adjusted automaticly, then chips drop through screen, chipping again for  large size material.
By hydraulic system, the cover shell of machine could be opened freely,  easy for user to replace the parts and knives, also convenient for adjusting the space between knives and dead knives.

Feature

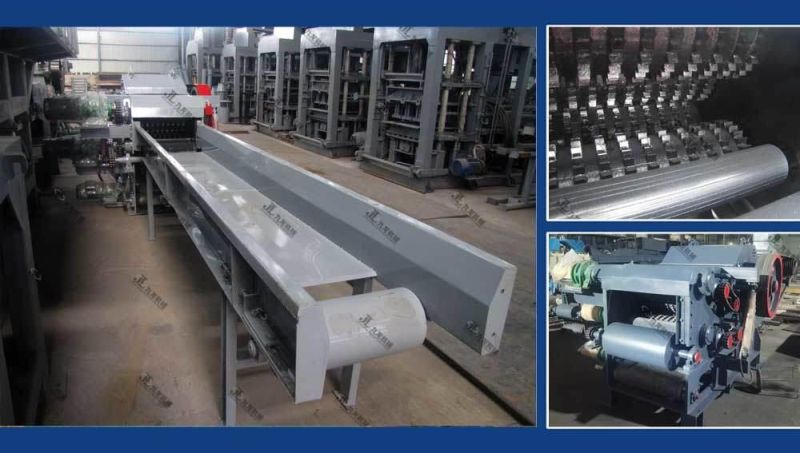

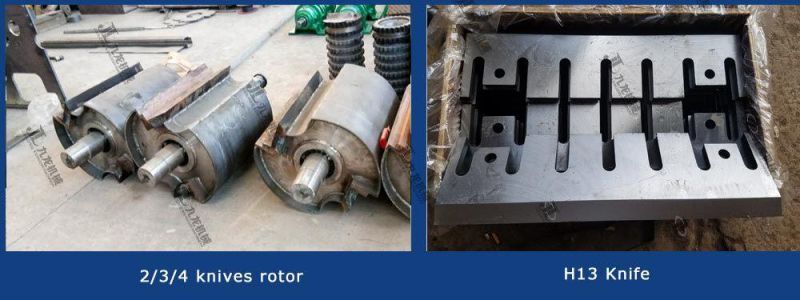

The structure of drum chipper: knife rotor, feeding rollers, feed and discharge conveyors, hydraulic system and other parts. The body of drum chipper made of high strengthen steel, the moving knives on rotor could be 2 knives, 3 knives, 4knives. The moving knife fixed by high strength bolts and press board; hydraulic system helps chipper has ability to process different diameter materials

Application:

Company Information

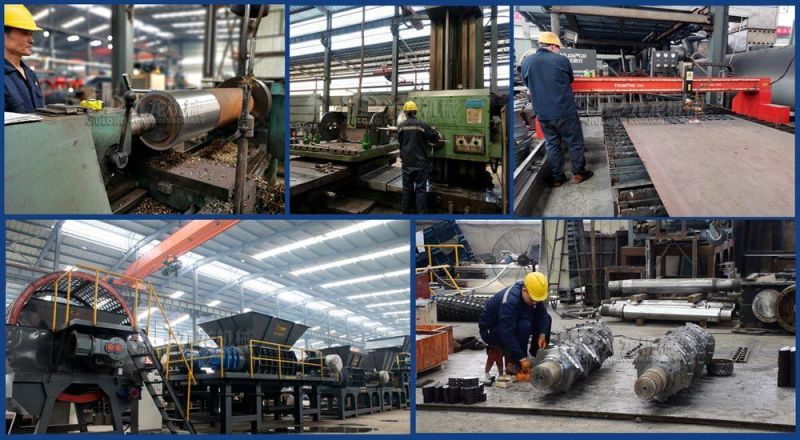

KOWLOON was established since 1986, located in Zhengzhou city, which city of industrial hub of China, 30years experience on manufacturing of:

Wood processing machinery: wood pellet production line, wood shredder, wood drum chipper, wood sawdust machine, wood powder machine, rotary dryer and air flow drying machine, wood debarking machine.

Waste tire recycling machinery: tire recycling plant, industrial two shaft shredder, tire roller mill multi-purpose rasper, rubber granulator, rubber powder machine, tire cutting machine, tire steel debeader, and fiber separate machine.

By now, KOWLOON machines were exported to more than 30 countries and share market in worldwide, owns oversea distributors and after-sale service center and now still growing continuously.


FAQ

You May Have Following Questions:

Q1:Are You Trading Company or Factory?

     Kowloon Machinery is a Factory with 31 years experience in Machinery Manufacturing,we provide you competive Factory Price

     and good After-sale Service!

Q2:What About The Machine Installation?

     For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful

     installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide

     the installation if necessary

Q3:How About The Spare Parts?

     We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing

     parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts

     in stock.

Q4:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?

     Kowloon has people special for after-sale service,if customers outside China have problems when machine working,just feel

     free to send us the picture or video to show us,we will give you solutions in 24hours.

Q5:Could We Visit Your Factory and Test the Machine?

     We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
