• Model NO.：RC30A
• Cutting Width：1800mm
• Working Way：Rotary
• Type：The Hydraulic Motor
• Input Sfat：Rectangular Spline,Involute Spline,Single
• Speed Ratio：1.92:1 or According Custmer Ratio
• Output Shaft：Taper Involute Spline
• Gear：Taper Gear
• Oil Cap：0.8L
• Weight：23kg
• Transport Package：Steel Case
• Specification：380X245X205mm
• Trademark：YT
• Origin：Jining Sifang Machinery Factory
• HS Code：8483409000
• Production Capacity：10000pices

Basic Info.

Model NO. RC30A Cutting Width 1800mm Working Way Rotary Type The Hydraulic Motor Input Sfat Rectangular Spline/Involute Spline/Single Speed Ratio 1.92:1 or According Custmer Ratio Output Shaft Taper Involute Spline Gear Taper Gear Oil Cap 0.8L Weight 23kg Transport Package Steel Case Specification 380X245X205mm Trademark YT Origin Jining Sifang Machinery Factory HS Code 8483409000 Production Capacity 10000pices

Product Description

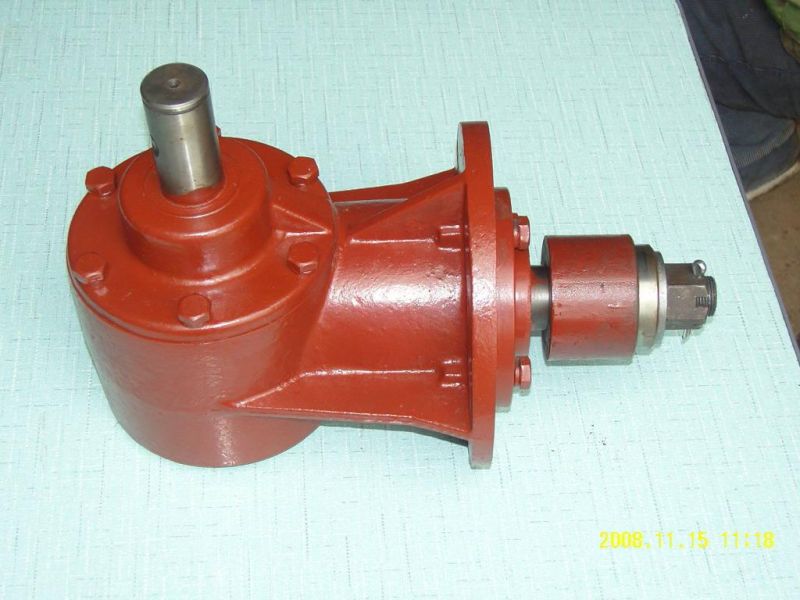

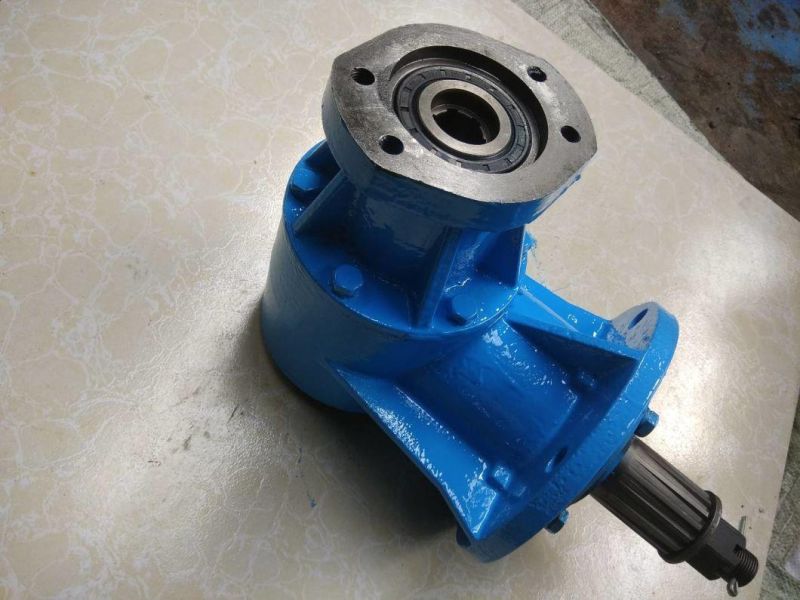

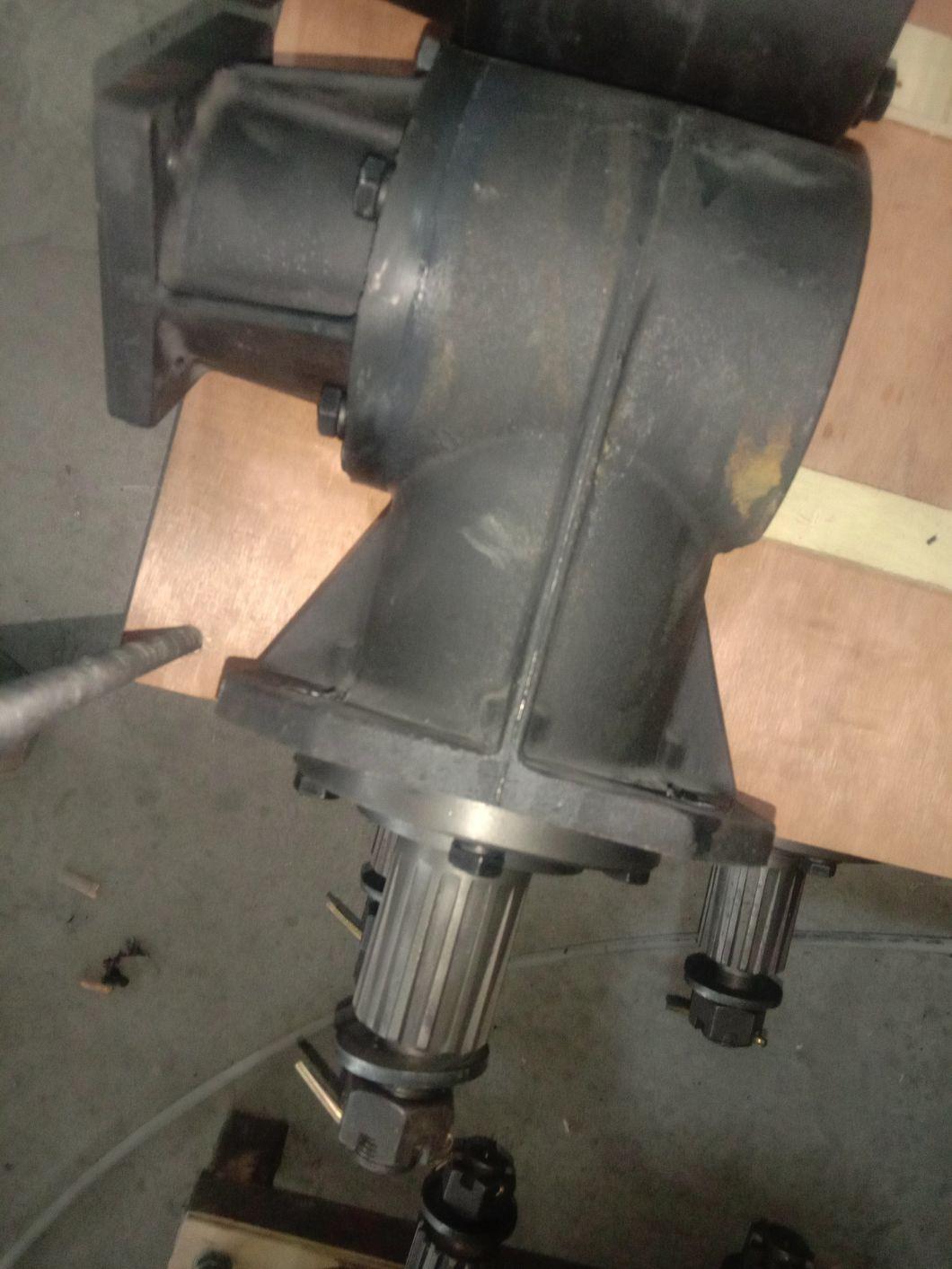

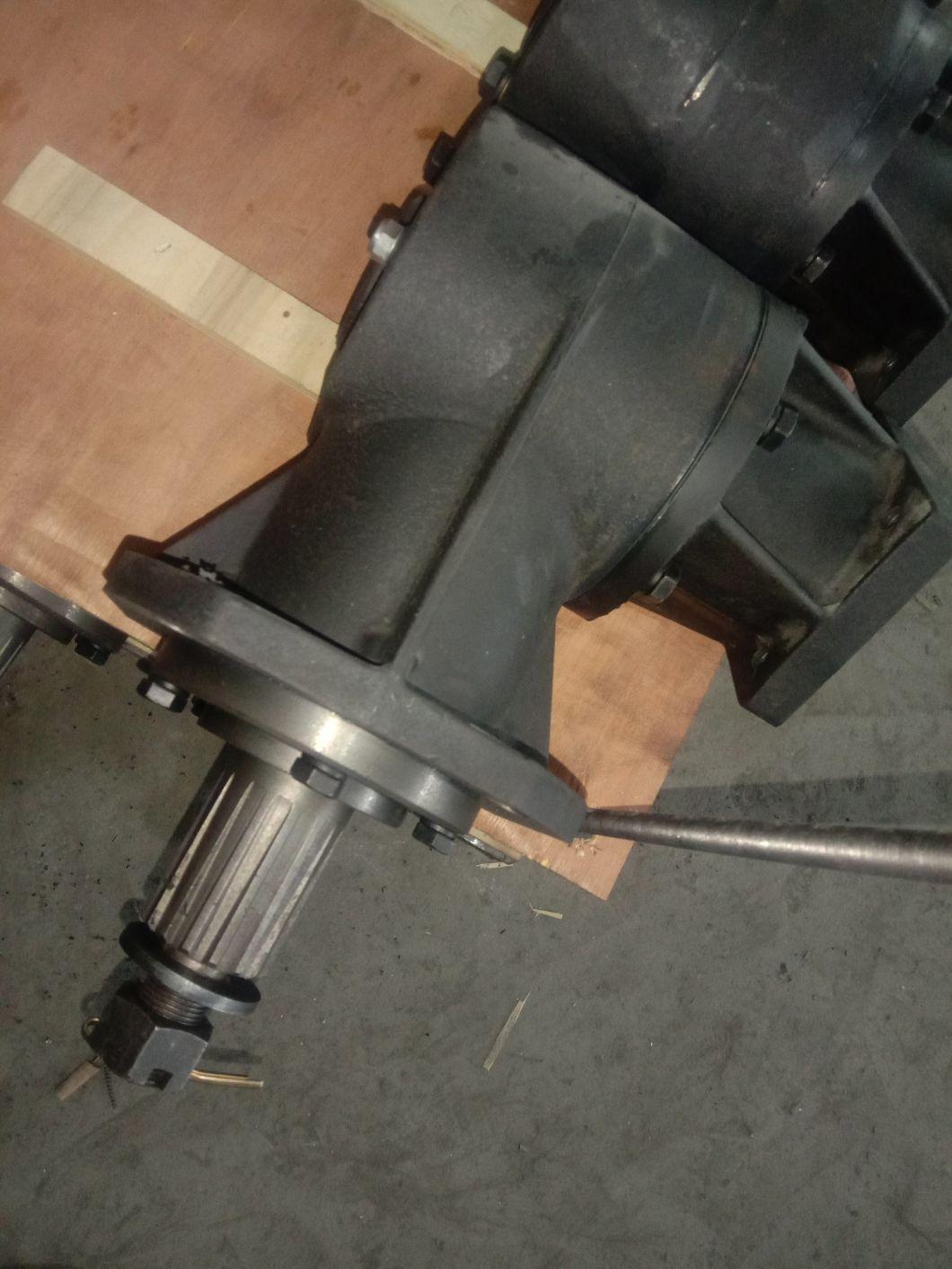

Hydraulic motor lawn mower gear box is a new type of lawn mower gear box newly developed by Jining Sifang Machinery Factory, which has declared the national utility model technology patent, patent Certificate No. 8741078, patent No. ZL 2018 2 1386880.0. This lawn mower is suitable for a variety of hydraulic motors. The input end face and input shaft can select the corresponding hydraulic motor according to the custom of the customer. The shape of the input face is rhombic four-threaded hole connection, two-threaded hole connection, square four-threaded hole connection, rectangular spline, involute spline, single key and other forms.

The gear box is connected to the machine body of the lawn mower with a diameter of 133 mm, a diameter of 17 mm and a diameter of 171.2 mm

The gear box is connected with the tool holder of the lawn mower by the number of taper involute spline teeth, and the diameter pitch is 5/10, 4/8 according to the user's requirements
