• Model NO.：ULV-60A-H
• Power Supply：Electric
• Technics：Injection Molding
• Material：PE
• Type：Ulv Sprayer
• Product Size (mm)：420×160×275
• Net Weight (Kg)：2.7
• Individual Package Size (mm)：520×200×330
• Individual Package Weight (Kg)：4
• Large Package Size (mm)：530×420×710
• Large Package Weight (Kg)：17
• Transport Package：Carton
• Specification：0.035CBM
• Trademark：SENDfog
• Origin：Shenzhen China
• HS Code：8424410000
• Production Capacity：60000pieces,Year

Basic Info.

Model NO. ULV-60A-H Power Supply Electric Technics Injection Molding Material PE Type Ulv Sprayer Product Size (mm) 420×160×275 Net Weight (Kg) 2.7 Individual Package Size (mm) 520×200×330 Individual Package Weight (Kg) 4 Large Package Size (mm) 530×420×710 Large Package Weight (Kg) 17 Transport Package Carton Specification 0.035CBM Trademark SENDfog Origin Shenzhen China HS Code 8424410000 Production Capacity 60000pieces/Year

Product Description

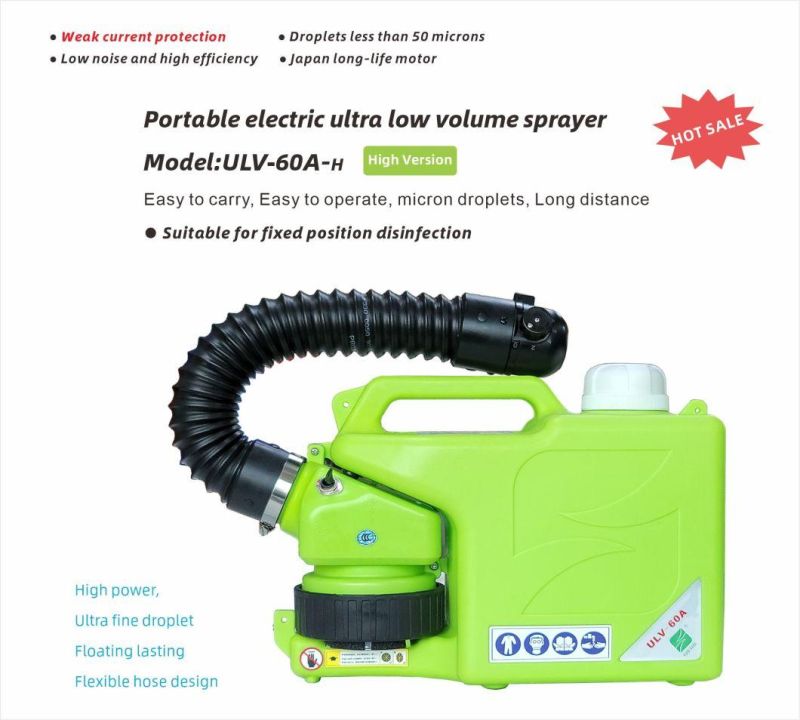

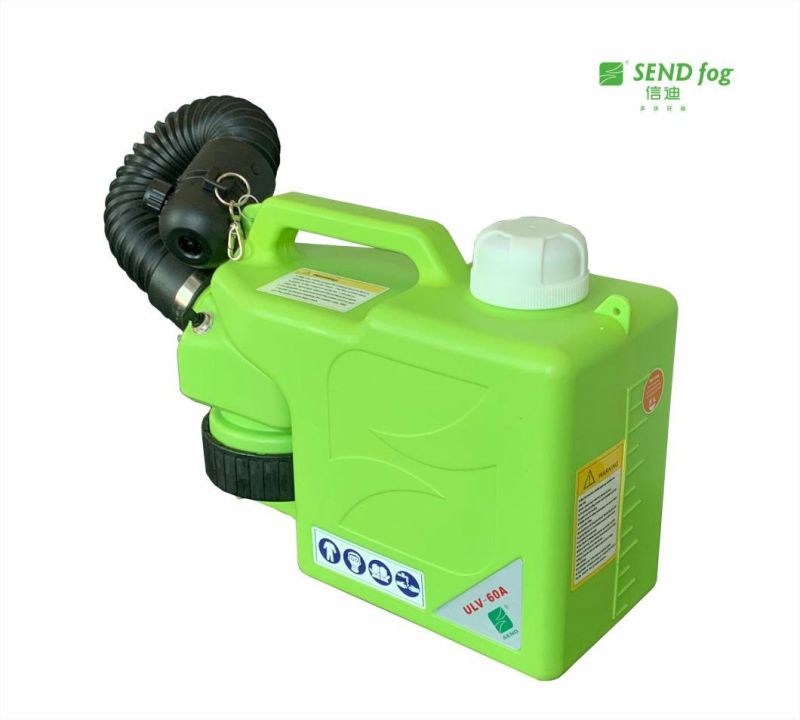

Product Name: Electric ultra low volume sprayer

Model: ULV-60A-H

Technical parameter:
Tank capacity:   6.0 liters
Flow control: continuously adjustable
Spray volume: 150-400 ml / min (continuous adjustable)
Droplet diameter(VMD): < 50 microns
Spray distance : 8~12 meters
Injection angle:15~45°
Hose length:   580mm
Work efficiency:   ≥6,000m3/h
Power switch: Weak current protection
Applicable voltage: AC110V 60Hz/AC220V 50Hz
Power consumption:  ≤500W / ≤800W
High speed fan:  33000r/min
Length of wire:  approx.5m
Product size:420LX 160WX275H mm
Net weight:  approx.2.7 kg

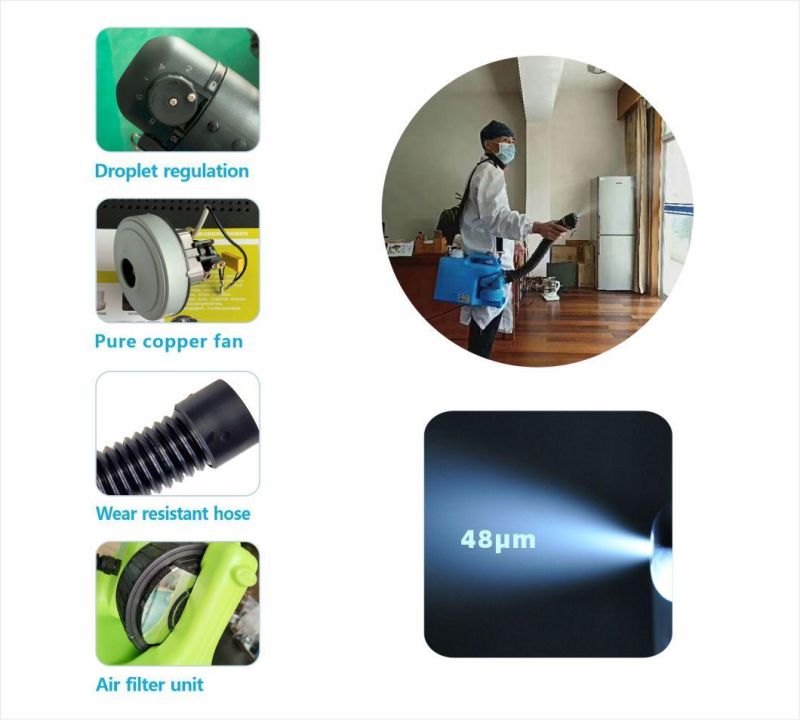

Turbocharged swirl spray nozzle with droplet diameter less than 50 microns in diameter.

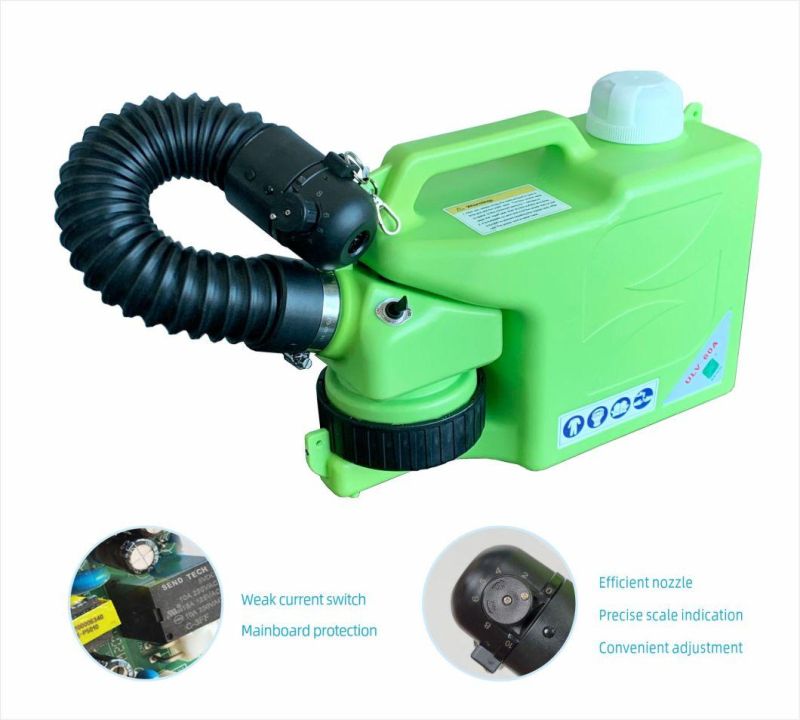

Weak current protection switch, high safety; The performance of the main board control circuit is stable.
The wind turbine with high energy efficiency ratio made in Japan has strong wind power, low noise, super long and durable.

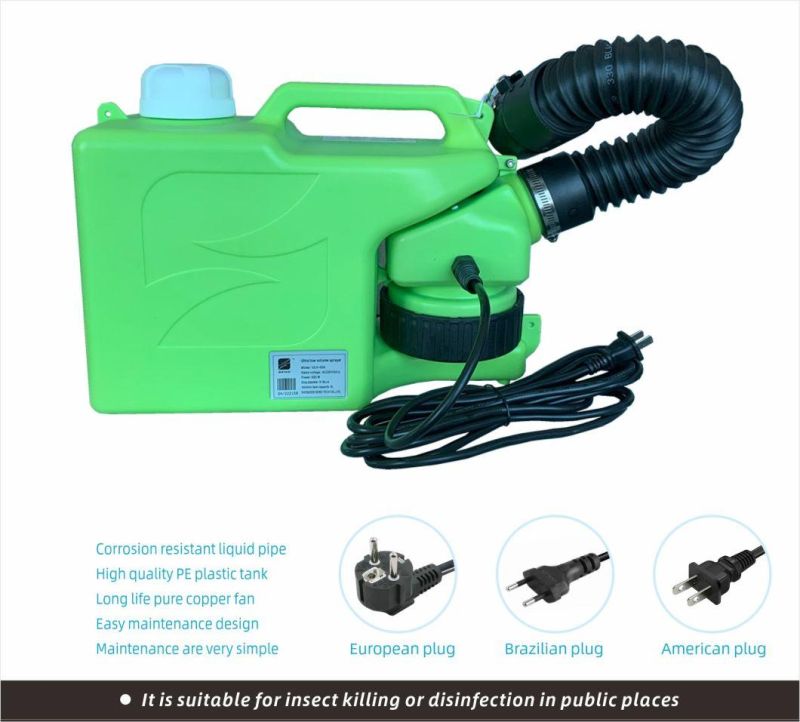

Polyurethane hose made in Germany has wear resistance and high tensile strength.
